Continuous Soffit Vent for Soffit Applications 1-3/4″, 2-5/8″, 3″, 4″ and 6″ vents
Click on thumbnail(s) to view larger image
Product Category: Fiber Cement Board Trims, Lumber, Building Materials, Plaster/Stucco, Vents
Application
Used on soffits where 3/8" (10 mm) sheathing is being used. Vent holes are 1/8" (3 mm) diameter. Excellent paint adhesion. Connector clips included. Will not rust or corrode.
Specifications
Soffit Vent shall be Plastic Components Inc. #_________. All exterior accessories shall be of PVC material conforming to ASTM standards D1784, C1063, C1861 and D4216. They shall be used where specified by the design authority and installed per industry standards.
Information Sheets
Drawings
Product Chart
| Add to Submittal | Product # | Description | Dimensions | Packaging |
|---|---|---|---|---|
| 300 | 2-5/8" (67 mm) vent area. 15 sq. in. (9,678 sq. mm) of free air flow per linear ft. |
3/8" (10 mm) ground |
50 per box | |

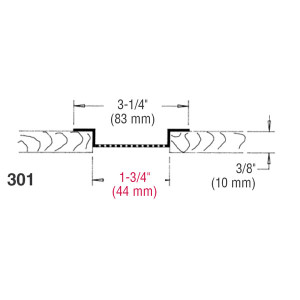

| 301 | 1-3/4" (44 mm) vent area. 7 sq. in. (4,516 sq. mm) of free air flow per linear ft. |
3/8" (10 mm) ground |
50 per box | |
| 3300 | 3" (76 mm) vent area. 15 sq. in. (9,678 sq. mm) of free air flow per linear ft. |
3/8" (10 mm) ground |
35 per box | |
| 4300 | 4" (102 mm) vent area. 16 sq. in. (10,323 sq. mm) of free air flow per linear ft. |
3/8" (10 mm) ground |
35 per box | |
| 6300 | 6" (152 mm) vent area. 20 sq. in. (12,904 sq. mm) of free air flow per linear ft. |
3/8" (10 mm) ground |
30 per box |
Product Notes
10' (3 m) lengths • Connector Clips Included
The base coat mesh should be lapped over the top of the perforated flanges and across all butt joints.
It is recommended that PVC products be used for all exterior exposures.
